Boiler fans

Industrial boiler is one of the most popular application areas for SIMO BLOWER‘s products. SIMO BLOWER can provide full sets of boiler fans products, can meet 1~450T of coal fired boiler, biomass boiler, waste incineration boiler and other industrial boiler systems’ performance requirements.

SIMO BLOWER is available for sale to the users of industrial boiler fan including: Coal-fired boiler fan, Biomass fuel boiler fan, Waste incineration boiler fans, which is used to industrial boiler f orced draft fan （FD Fan）, induced draft fan（ID Fan）, primary air fan（PA Fan）, secondary air fan（SA Fan）, as well as flue gas dust removing fan, flue gas desulfurization fan(FGD Fan), flue gas denitrification fan and so on.

Boiler fans measure

High temperature measures: high temperature resistant alloys, reasonable cooling measures, and scientific anti-high temperature deformation structure

Wear-resistant measures: high-hardness composite materials to ensure the use of the impeller and prolong its life

High-efficiency products: high-efficiency models optimized by simulation analysis, strict processing process

Boiler fans specification

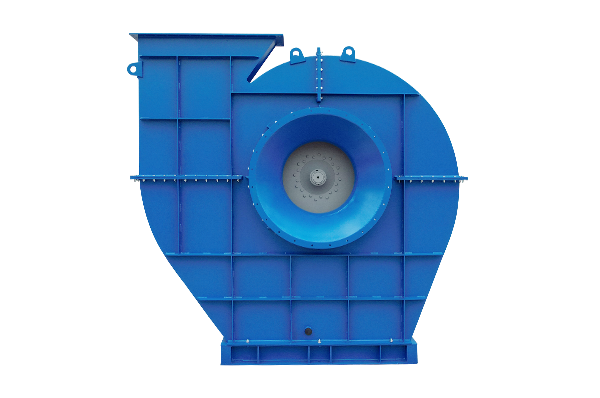

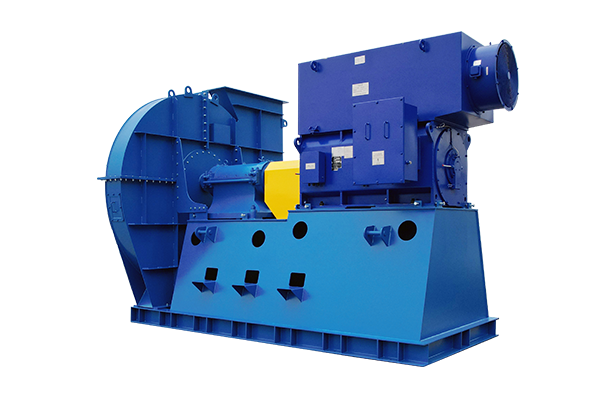

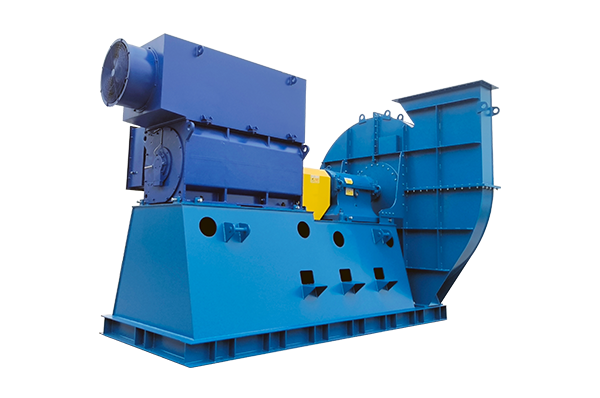

Type of fan	picture	medium	temperature ℃)	Air Capacity(m³/h)	Total Pressure(Pa)	Rotation Speed(r/min)	Power(kW)
Boiler blower		The air	20	20000~200000	3000~13000	730~2900	30~1000
ID Fan		Flue gas	120~250	20000~600000	3000~13000	730~1450	30~2500
PA Fan		The air	20	20000~200000	3000~13000	730~2900	30~1000
SA Fan		The air	20	20000~200000	3000~13000	730~2900	30~1000
FGD fan		Flue gas	100~400	20000~600000	3000~13000	730~1450	30~1000
Pulverized coal fan		Pulverized coal air	20~100	20000~200000	3000~13000	730~1450	30~1000

Boiler fans application

Centrifugal fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.

Cooperation mode

Technical Services Sales agent Made to order
