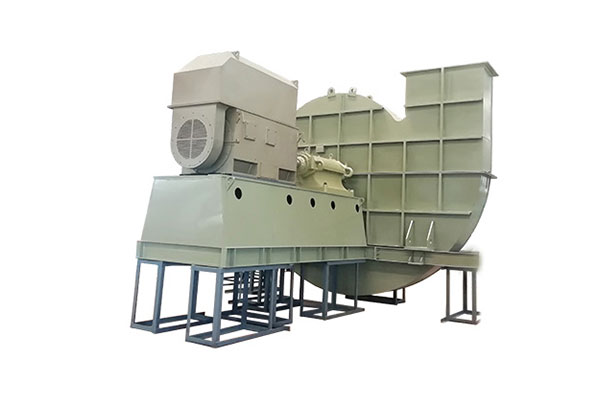

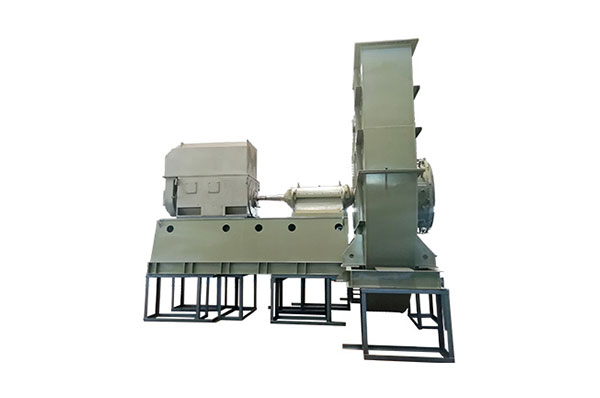

6-04 series centrifugal ventilation fan
6-04 series fans have high pressure coefficient, low peripheral speed, low noise, flat performance curve and wide area of high efficiency.

We're here to help: Easy ways to get the answers you need.

SEND EMAIL SEND INQUIRY
Share with:
Description
6-04 series fans have high pressure coefficient, low peripheral speed, low noise, flat performance curve and wide area of high efficiency.
They are used in forging furnaces and high pressure forced ventilation and are widely used to transport materials and air. The maximum temperature should not exceed 250 degrees Celsius.
Suitable for flow and dust removal ventilation systems in high pressure heads.
application
Centrifugal fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.





Structure
Drive, we usually divide the fan into:
In the process of choosing the fan, please select the appropriate fan according to the working conditions.
Specification

Series no.

6-04 series

Feature selection

Normal

anti-corrosion

wear-resisting

High temperature

anti-explosion

Remarks

Performance

Impeller diameter

400-3000mm



Rotation speed

≤4000rpm



Pressure range

2170-21000Pa



Flow range

563-380000㎥/h



Structure

Blade type

Backward, Straight, Aerofoil type



Impeller support

SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type



Lubrication method

Oil bath lubrication, grease lubrication, lubrication oil station

Can be specified

Cooling method

Air cooling, Water cooling, Oil cooling

Can be specified

Driven mode

Direct driven, Coupling driven, Belt driven

Can be specified

Gas composition

Gas temperature

Normal

Customer request

Customer request

≥250℃

Customer request



gas characteristic

Clean gas

Corrosive gas

Particulate dust

High temperature gas

Flammable gas, explosive gas



System configuration

Motor brand

Chinese famous brand, ABB, Siemens, WEG etc

Can be specified

Impeller

High quality carbon steel

FRP, Stainless steel, Rubber Lining

Wear-resistant layer or wear-resistant liner, ceramic patch

High temperature high quality alloy steel

FRP, Aluminum alloy

Can be specified

Air inlet cone

High quality carbon steel

FRP, Stainless steel, Rubber Lining

High quality carbon steel

High quality carbon steel

High quality carbon steel

Can be specified

Casing

High quality carbon steel

FRP, Stainless steel, Rubber Lining

High quality carbon steel

High quality carbon steel

High quality carbon steel

Can be specified

Air damper

High quality carbon steel

FRP, Stainless steel, Rubber Lining

High quality carbon steel

High quality carbon steel

High quality carbon steel

Can be specified

Main shaft

High strength carbon steel, Alloy structural steel

Can be specified

Bearing

ZWZ, SKF, FAG, NSK

Can be specified

Bearing housing

Cast iron



Foundation bolts

GB799-1988



Option parts

System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.

Features

01

It can output higher outlet pressure and provide more gas flow at the same time, low noise. Stable operation at higher media temperatures.

02

The variable inlet damper can be used to flexibly adjust the pressure and flow of the fan during operation. The variable frequency motor can also be selected to adjust the pressure and flow of the fan by changing the speed.

03

Bearing cooling method: according to gas temperature and operating environment conditions choose low-cost water-cooling method or oil-cooling method with good heat dissipation performance. For extremely high temperature operating conditions, can also be installed with an electronic cooler, absolute protection of the reliable operation of the fan system.

04

The material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature &high-strength alloy steel for different working conditions temperature and working speed, so that the impeller and main shaft at high temperature still maintain reliable strength.

05

The bearing housing is reserved for the installation position of temperature and vibration sensors, which can facilitate the installation of fan operation monitoring device.

06

Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.

07

After running test and vibration value detection, the operation is reliable.
