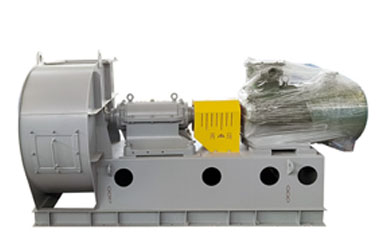

The 4-09 series large-flow centrifugal fan is the earliest used fan in China, and it is also the most commonly used fan.
Suitable for conveying clean air or light materials at normal temperature, most commonly used in industrial furnaces for air supply, light particle/powder/crush/fiber transportation, air drying/cooling of materials, ventilation and smoke exhaust, and other areas.
No viscous substances are allowed inside the gas, and the dust and hard particles contained in the gas are larger than 150 mg/m3, and the gas temperature does not exceed 80°C.
The 4-09 series large-flow centrifugal fan is the earliest used fan in China, and it is also the most commonly used fan.
Suitable for conveying clean air or light materials at normal temperature, most commonly used in industrial furnaces for air supply, light particle/powder/crush/fiber transportation, air drying/cooling of materials, ventilation and smoke exhaust, and other areas.
No viscous substances are allowed inside the gas, and the dust and hard particles contained in the gas are larger than 150 mg/m3, and the gas temperature does not exceed 80°C.
|
Series no. |
4-09 series |
Feature selection |
|||||
|
Normal |
anti-corrosion |
wear-resisting |
High temperature |
anti-explosion |
Remarks |
||
|
Performance |
Impeller diameter |
250-2000mm |
|
||||
|
Rotation speed |
≤4000rpm |
|
|||||
|
Pressure range |
778-6761Pa |
|
|||||
|
Flow range |
1199-435813㎥/h |
|
|||||
|
Structure |
Blade type |
Backward, Straight, Aerofoil type |
|
||||
|
Impeller support |
SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type |
|
|||||
|
Lubrication method |
Oil bath lubrication, grease lubrication, lubrication oil station |
Can be specified |
|||||
|
Cooling method |
Air cooling, Water cooling, Oil cooling |
Can be specified |
|||||
|
Driven mode |
Direct driven, Coupling driven, Belt driven |
Can be specified |
|||||
|
Gas composition |
Gas temperature |
Normal |
Customer request |
Customer request |
≥250℃ |
Customer request |
|
|
gas characteristic |
Clean gas |
Corrosive gas |
Particulate dust |
High temperature gas |
Flammable gas, explosive gas |
|
|
|
System configuration |
Motor brand |
Chinese famous brand, ABB, Siemens, WEG etc |
Can be specified |
||||
|
Impeller |
High quality carbon steel |
FRP, Stainless steel, Rubber Lining |
Wear-resistant layer or wear-resistant liner, ceramic patch |
High temperature high quality alloy steel |
FRP, Aluminum alloy |
Can be specified |
|
|
Air inlet cone |
High quality carbon steel |
FRP, Stainless steel, Rubber Lining |
High quality carbon steel |
High quality carbon steel |
High quality carbon steel |
Can be specified |
|
|
Casing |
High quality carbon steel |
FRP, Stainless steel, Rubber Lining |
High quality carbon steel |
High quality carbon steel |
High quality carbon steel |
Can be specified |
|
|
Air damper |
High quality carbon steel |
FRP, Stainless steel, Rubber Lining |
High quality carbon steel |
High quality carbon steel |
High quality carbon steel |
Can be specified |
|
|
Main shaft |
High strength carbon steel, Alloy structural steel |
Can be specified |
|||||
|
Bearing |
ZWZ, SKF, FAG, NSK |
Can be specified |
|||||
|
Bearing housing |
Cast iron |
|
|||||
|
Foundation bolts |
GB799-1988 |
|
|||||
|
Option parts |
System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument. |
||||||
